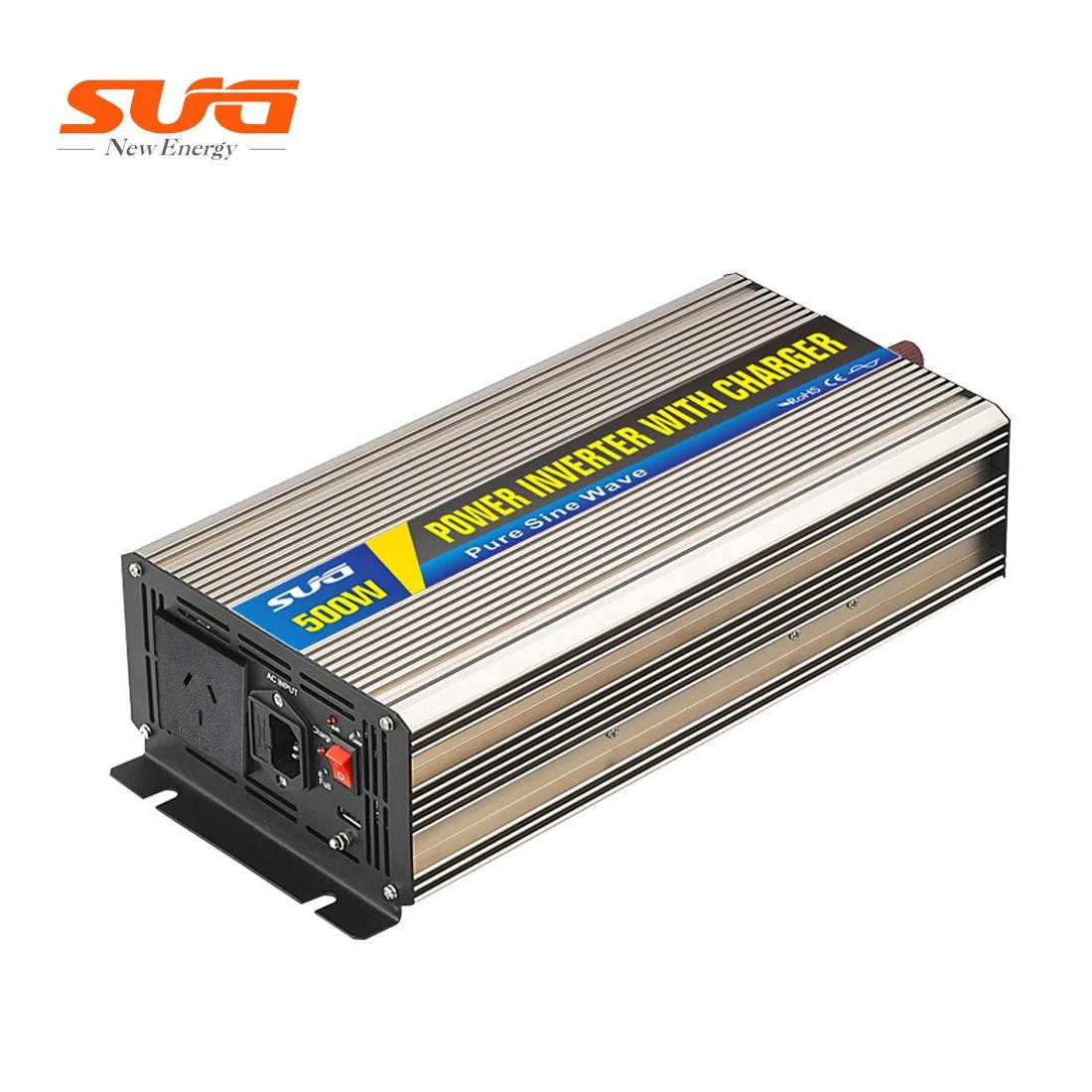

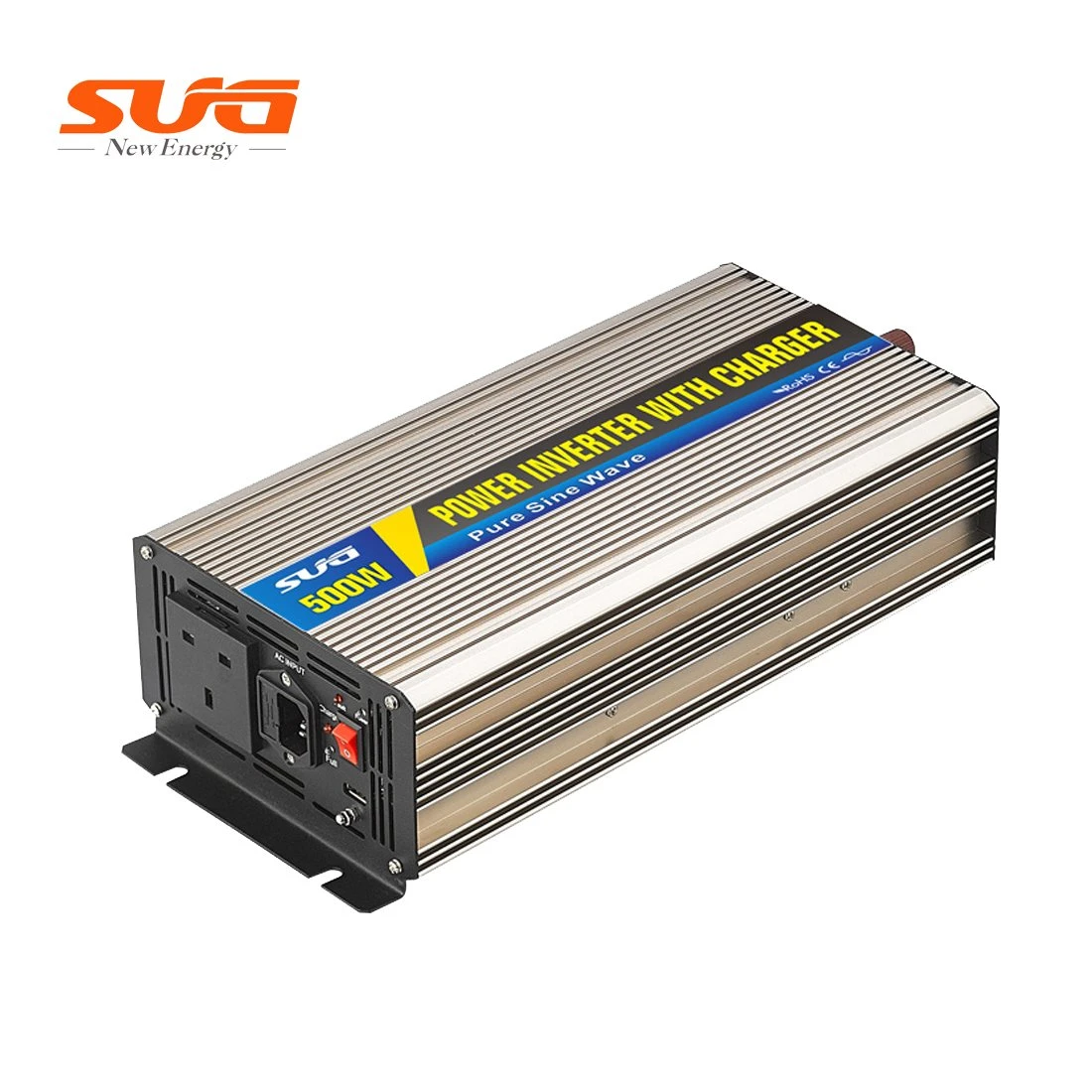

UK SGPC-500w r500W Inverter Solar Charge Controller Mppt Charge Controller
Products Specification :
Model | SGPC500A-121 | SGPC500A-122 | SGPC500A-241 | SGPC500A-242 | SGPC500A-481 | SGPC500A-482 |
Rated Power | 500W | |||||
Surge Power | 1000W(few seconds) | |||||
Input Voltage | 12VDC | 24VDC | 48VDC | |||
Output Voltage | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% |
USB Port | 5V 1A | |||||
Frequency | 50Hz±3 or 60Hz±3 | |||||
Output Waveform | Pure Sine Wave | |||||
Soft Start | YES | |||||
Charging Current | 10/20/30A optional | |||||
Priority | City Power First Priority | |||||
Transfer Time | 4ms | |||||
Cooling Way | Intelligent Cooling Fan | |||||
Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity | |||||
Working Temperature | -10ºC - +50ºC | |||||
Net Dimension | 36.2*16.5*8.7cm (L×W×H) | |||||
Inner Box Dimension | 45.6*20.6*12.2cm(L×W×H) | |||||
Meas./Ctn | 52*47.5*38cm/4 pcs | |||||
N.W./Unit | 4kg | |||||
G.W./Ctn | 19KGS | |||||
Packing | Carton | |||||
Warranty | 1 Years | |||||
