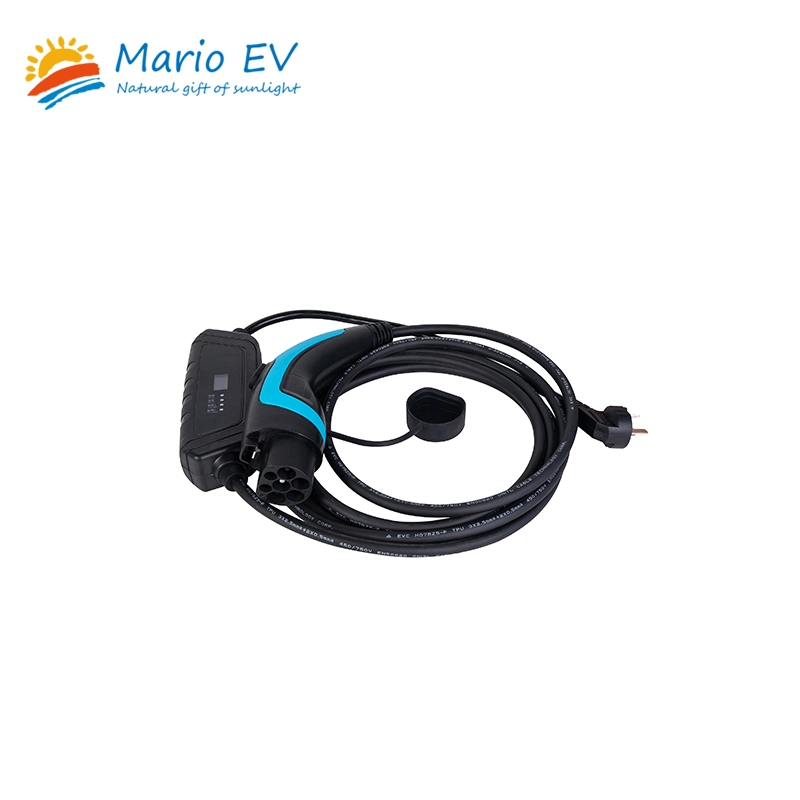

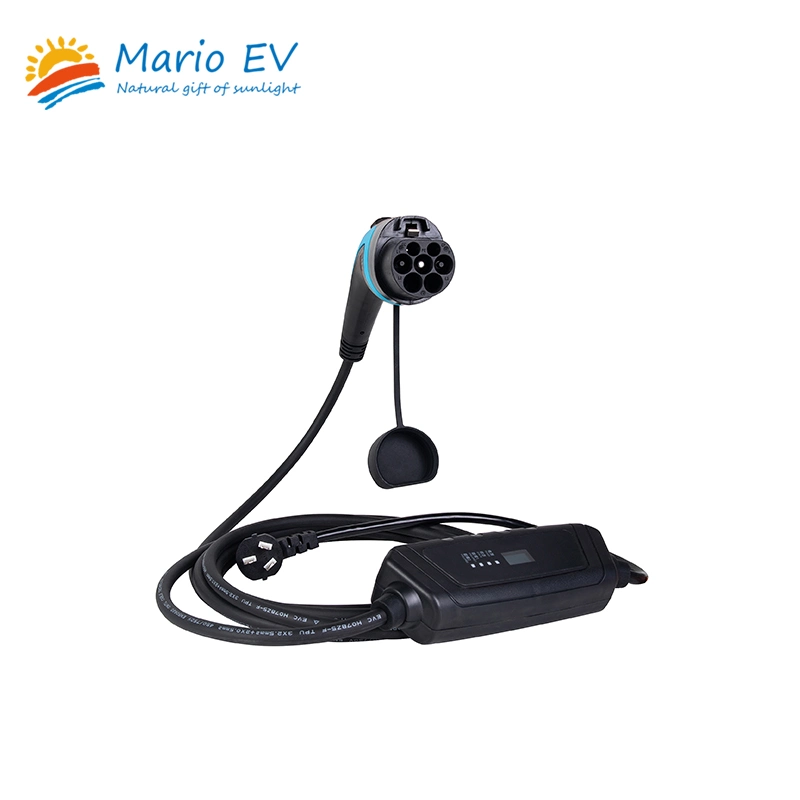

Mode 2 GB 13A/220V AC
1. Conform to the provisions and requirements of GB/T20234.2-2015, GB/T18487.1-2015
2. Using riveting pressure process with none screw, have a beautiful appearance. Hand-held design conform to the ergonomic principle, plug conveniently
3.The panel of IC-CPD used screen to display the current and voltage, the charging state and the temperature of the circuit board in real time.
4. Excellent protection performance, protection grade of IC-CPD achieved IP66 and achieved IP55 of plug (working condition)
5. Adopted double color coating technology, personalized custom a variety of colors (Orange, blue, green, grey)
6. Mechanical life: no-load plug> 10000
7. Impact of external force: can afford 1m drop and 2t vehicle run over pressure
1. The rated current: 13A, 16A
2. The rated voltage: 220V
3. Insulation resistance: >1000MΩ (DC500V)
4. Pins temperature rise: <50K
5. Withstand voltage: 2500V
6. Duty cycle: 21.67%
7. Over-voltage, under-voltage protection
8. Over-current protection
9. Earth leakage protection
10. Ground protection: continuous monitoring grounding protection
11. Lightning protection
12. Over-temperature protection: break the circuit when the temperature is over 85 ºC and continuous 3s
13. Shell material: thermoplastics, flame retardant grade UL94-0
14. Operating temperature: -30 ºC ~ +50 ºC
2. The rated voltage: 220V
3. Insulation resistance: >1000MΩ (DC500V)
4. Pins temperature rise: <50K
5. Withstand voltage: 2500V
6. Duty cycle: 21.67%
7. Over-voltage, under-voltage protection
8. Over-current protection
9. Earth leakage protection
10. Ground protection: continuous monitoring grounding protection
11. Lightning protection
12. Over-temperature protection: break the circuit when the temperature is over 85 ºC and continuous 3s
13. Shell material: thermoplastics, flame retardant grade UL94-0
14. Operating temperature: -30 ºC ~ +50 ºC
1. Conform to the provisions and requirements of GB/T20234.2-2015, GB/T18487.1-2015
2. Using riveting pressure process with none screw, have a beautiful appearance. Hand-held design conform to the ergonomic principle, plug conveniently
3.The panel of IC-CPD used screen to display the current and voltage, the charging state and the temperature of the circuit board in real time.
4. Excellent protection performance, protection grade of IC-CPD achieved IP66 and achieved IP55 of plug (working condition)
5. Adopted double color coating technology, personalized custom a variety of colors (Orange, blue, green, grey)
6. Mechanical life: no-load plug> 10000
7. Impact of external force: can afford 1m drop and 2t vehicle run over pressure
